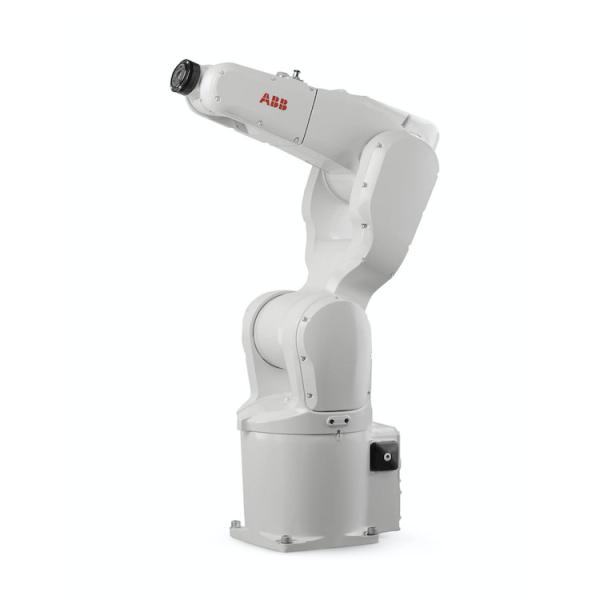

6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg

  • 1
  • 2
  • 3

Brand Name : ABB

Model Number : IRB 1200-7/0.7

Place of Origin : China

MOQ : 1 set

Price : US $21148.00 - 22032.00/ Set

Payment Terms : L/C, T/T

Supply Ability : 100 pieces per month

Delivery Time : 30-60 work days

Packaging Details : ONE ABB large industrial total station IRB1200-7/0.7 6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 kg packing with fumigation wooden frame, Total WG:110KG(>VG)

Robot version : IRB 1200-7/0.7

Reach : 700mm

Payload : 7Kg

Armload : 0.3Kg

Protection : Standard robot(IP40) Optional

Mounting : Any angle

Weight : 54Kg

Controller : IRC5 compact/IRC5 single cabinet

Position repeatability : 0.025mm

Accuracy : 0.02mm

Material : Aluminum alloy

Contact Now

6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 kg

6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg

Specification

Robot version Reach(m) Payload(kg) Armload(kg)
IRB 1200-7/0.7 0.7 7 0.3
IRB 1200-5/0.9 0.9 5 0.3
Protection Standard robot(IP40) or IP67,Foundry Plus 2 based on IP67,Food Grade Lubricant and Clean Room(ISO class 3)based on IP67

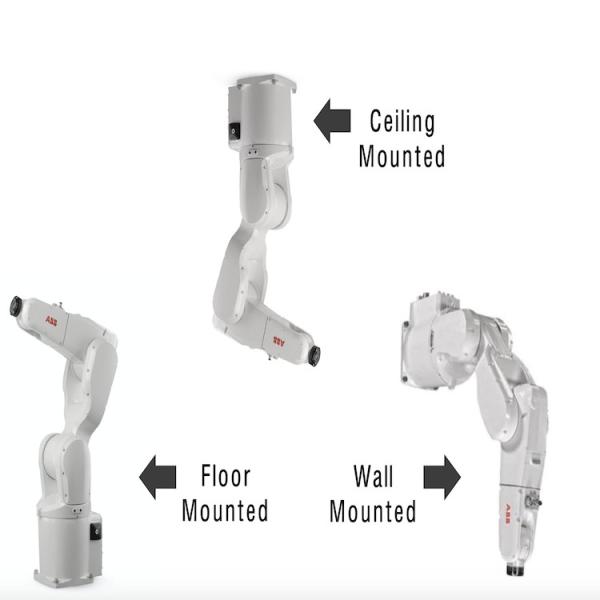

Mounting Any angle
Controllers IRC5 compact/IRC5 single cabinet
Integrated signal and power supply 10 signals on wrist
Integrated air supply 4 air on wrist(5 Bar)
Integrated ethernet One 100/10 Base-TX Ethernet port
Accuracy 0.02mm

Performance(according to ISO 9283)

Robot version

1 kg picking cycle

Reach(m)

 Payload(kg)
25x300x25 mm 0.42s 0.42s
Max.TCP Acceleration 35m/s*s 36m/s*s
Acceleration time 0-1m/s 0.06s 0.06s
Position repeatability 0.02mm 0.025mm

6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 700mm Max Payload 7kg Armload 0.3 Kg
